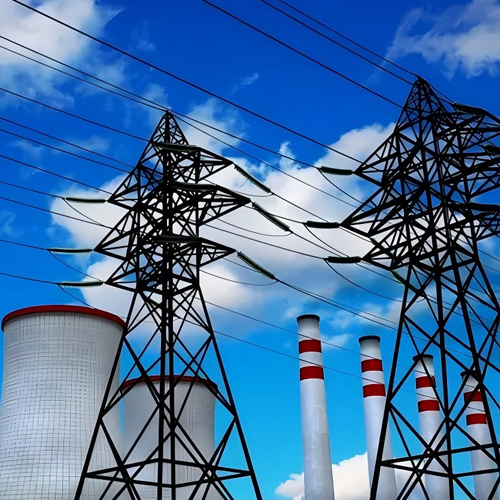

ACSS & ACSS/AW is used for overhead distribution and transmission lines. It is designed to operate continuously at elevated temperatures up to 250°C without loss of strength; it sags less under emergency electrical loadings than ACSR/AW; it is self-damping if prestretched during installation; and its final sags are not affected by long term creep of aluminum. The advantages make ACSS/AW especially useful in reconductoring applications requiring increased current with existing tensions and clearances, new line applications where structures can be economized because of reduced conductor sag, new line applications requiring high emergency loadings, and lines where aeolian vibration is a problem.

ACSS/AW offers strength characteristics similar to ACSS, along with slightly greater ampacity and resistance to corrosion due to aluminum-cladding of the steel core wires. Electric Power Supply Overhead Line ACSS/AW Conductor

ACSS/TW is designed for overhead distribution and transmission lines. It is designed to operate continuously at elevated temperatures up to 250°C without loss of strength, it sags less under emergency electrical loadings than 0 ACSR/TW, excellent self-damping properties, and its final sags are not affected by long-term creep of aluminum.

ACSS Conductor Construction

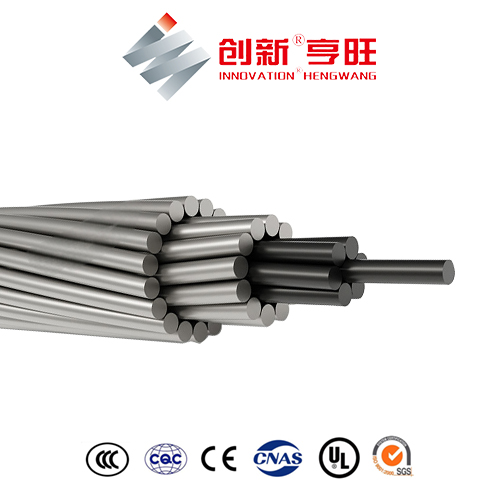

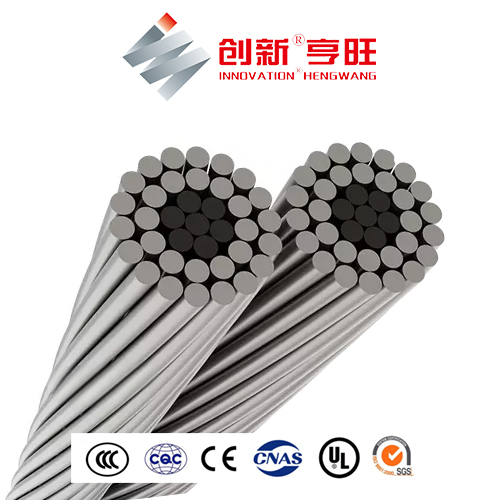

ACSS is a composite concentric-lay-stranded conductor. Steel strands form the central core of the conductor with one or more layers of 63% minimum average conductivity aluminum 1350-0 wire stranded around it. The steel core carries most or all of the mechanical load of the conductor due to the “0” (fully annealed or soft) temper aluminum. Steel core wires are protected from corrosion by Galfan® , zinc-5% aluminum-mischmetal alloy coating. High strength steel core, aluminized, and aluminum clad steel core is also available. Corrosion protection should be selected to suit the environment to which the conductor will be exposed.

ACSS/AW is a composite concentric-lay-stranded conductor. Steel strands form the central core of the conductor with one or more layers of aluminum 1350-0 wire stranded around it. The steel core carries most or all of the mechanical load of the conductor due to the “0” (fully annealed or soft) temper aluminum. Steel core wires are protected from corrosion by an aluminum coating.

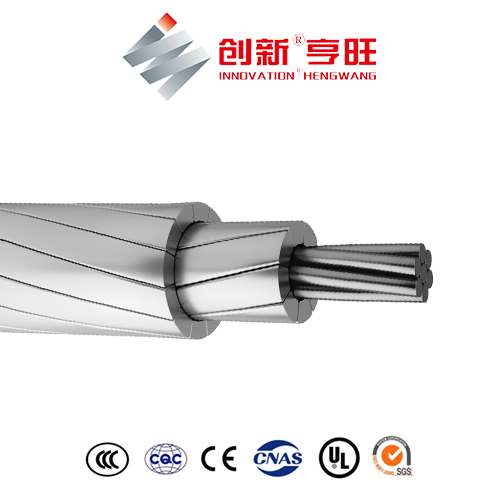

Shaped Wire Compact Concentric-Lay-Stranded Aluminum Conductor, Steel-Supported (ACSS/TW) is a concentrically stranded conductor with one or more layers of trapezoidal shaped hard drawn and annealed 1350-0 aluminum wires on a central core of steel.

ACSS Conductor Standards

ACSS conductor meets or exceeds the following American Standard-ASTM specifications:

B500 Metallic Coated Stranded Steel Core for Use in Overhead Electrical Conductors.

B609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes.

B802 Zinc-5% Aluminum-Mischmetal Alloy-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).

B803 High-Strength Zinc-5% Aluminum Mischmetal Alloy-Coated Steel Core Wire for Use in Overhead Electrical Conductors.

B856 Concentric-Lay-Stranded Aluminum Conductors, Coated Steel Supported (ACSS).

B958 Extra-High-Strength and Ultra-High-Strength Class A Zinc-5% Aluminum-Mischmetal Alloy-Coated Steel Core Wire for Use in Overhead Electrical Conductors.

The strandings available are identical to those listed in ASTM specification B232

ACSS/AW conductor meets or exceeds the following American Standard-ASTM specifications:

B609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes.

B502 Aluminum-Clad Steel Core Wire for Aluminum conductors, Aluminum-Clad Steel Reinforced.

B856 Concentric-Lay-Stranded Aluminum Conductors, Coated Steel Supported (ACSS).

The strandings available are identical to those listed in ASTM specification B232.

ACSS/TW conductor meets or exceeds the following American Standard-ASTM specifications:

B500 Metallic Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced.

B609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes.

B802 Zinc-5% Aluminum-Mischmetal Alloy-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced.

B803 High-Strength Zinc-5% Aluminum-Mischmetal Alloy-Coated Steel Core Wire for Aluminum and Aluminum-Alloy Conductors, Steel Reinforced.

B857 Shaped Wire Compact Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Supported (ACSS/TW).
