Product Description

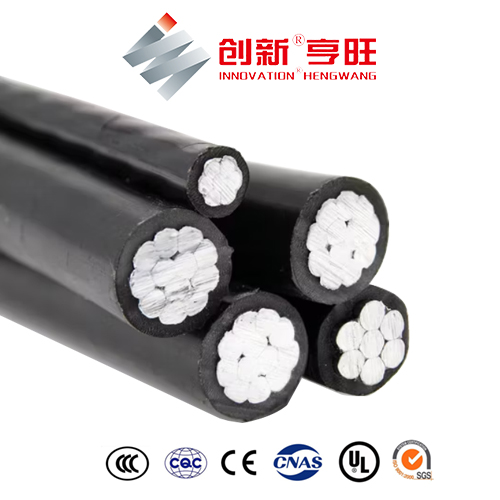

0.6/1kV Aerial Bundle Cable NFC 33-209

 Overhead Power Distribution ABC Cable With AAC conductor

Cable Aérien Torsadé Application

The Cable Aérien Torsadé NFC 33-209 aerial bundled cables are used for overhead distribution line and electrical installations with alternating power networks with nominal voltage U0/U 0 .6/1kV or in direct power networks with maximum voltage according to land 0.9kV.

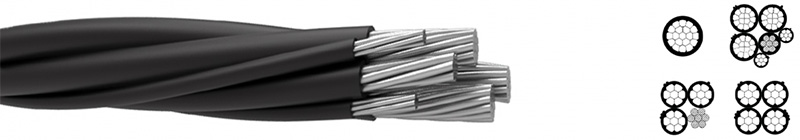

NFC 33-209 Cable Aérien Torsadé Construction


Phase Conductor: Aluminium conductor, round stranded compressed (RM).
Neutral Conductor: Alloy aluminium conductor (AlMgSi), round stranded compressed (RM).
Insulation: XLPE. Load-bearing / neutral core – marked with standard and producers phase core – marked with digits 1, 2, 3.
Assembly: Cores and the neutral, conductor stranded together in right-hand lay, additionally 1, 2 or 3 cores of reduced cross section can be co-stranded.

Câble Torsadé Aluminium Characteristics

  • Voltage rating: 0.6/1kV
  • Test voltage: 4kV, 5min no breakdown.
  • Operating temperature:  -40°C to +90°C
  • Minimum laying/installation temperature:  -20°C
  • Minimum bending radius: 12 x OD (overall diameter)
0.6/1kV Aerial Bundle Cable NFC 33-209 Specifications
Number of Cores x Nominal Cross Section Overal Diameter Weight Maximum Conductor Resistance Minimum Breaking Load Current Rating
No.x mm^2 mm Kg/Km Ω/Km KN A
2×10 RM 12.8 93 3.08 1.5 38
4×10 RM 15.4 183 3.08 1.5 38
2×16 RM 14.8 129 1.91 2.3 72
2×16 RN + 2×1.5 RE 14.8 176 1.910/12.100 2.3 72
4×16 RM 17.8 257 1.91 2.3 72
4×16 RN + 2×1.5 RE 17.8 304 1.910/12.100 2.3 72
2×25 RM 18 202 1.2 3.8 107
2×25 RM + 2×1.5 RE 18 249 1.200/12.100 3.8 107
4×25 RM 21.7 404 1.2 3.8 107
4×25 RM + 2×1.5 RE 21.7 451 1.200/12.100 3.8 107
2×35 RM 20.8 269 0.868 5.2 132
2×35 RM + 2×1.5 RE 20.8 316 0.868/12.100 5.2 132
4×35 RM 25.1 539 0.868 5.2 132
4×35 RM + 2×1.5 RE 25.1 586 0.868/12.100 5.2 132
2×50 RM 23.4 352 0.641 7.6 165
2×50 RM + 2×1.5 RE 23.4 399 0.641/12.100 7.6 165
1×54.6 RM + 3×25 RM 21.7 507 0.630/1.200 3.8 107
1×54.6 RM + 3×25 RM + 1×16 RM 24.3 573 0.630/1.200/1.910 3.8/2.3 107/72
1×54.6 RM + 3×25 RM + 2×16 RM 29.7 639 0.630/1.200/1.910 3.8/2.3 107/72
1×54.6 RM + 3×25 RM + 3×16 RM 31.1 705 0.630/1.200/1.910 3.8/2.3 107/72
1×54.6 RM + 3×35 RM 25.1 615 0.630/0.868 5.2 132
1×54.6 RM + 3×35 RM + 1×16 RM 28.1 680 0.630/0.868/1.910 5.2/2.3 132/72
1×54.6 RM + 3×35 RM + 2×16 RM 34.3 748 0.630/0.868/1.910 5.2/2.3 132/72
1×54.6 RM + 3×35 RM + 3×16 RM 35.9 814 0.630/0.868/1.910 5.2/2.3 132/72
1×54.6 RM + 3×35 RM + 1×25 RM 28.1 714 0.630/0.868/1.200 5.2/3.8 132/107
1×54.6 RM + 3×50 RM 28.2 741 0.630/0.641 7.6 165
1×54.6 RM + 3×50 RM + 1×16 RM 31.6 806 0.630/0.641/1.910 7.6/2.3 165/72
1×54.6 RM + 3×50 RM + 2×16 RM 38.6 875 0.630/0.641/1.910 7.6/2.3 165/72
1×54.6 RM + 3×50 RM + 3×16 RM 40.4 940 0.630/0.641/1.910 7.6/2.3 165/72
1×54.6 RM + 3×50 RM + 1×25 RM 31.6 841 0.630/0.641/1.200 7.6/3.8 165/107
1×54.6 RM + 3×70 RM 33 950 0.630/0.443 10.2 205
1×54.6 RM + 3×70 RM + 1×16 RM 37 1014 0.630/0.443/1.910 10.2/2.3 205/72
1×54.6 RM + 3×70 RM + 2×16 RM 45.2 1083 0.630/0.443/1.910 10.2/2.3 205/72
1×54.6 RM + 3×70 RM + 3×16 RM 47.3 1148 0.630/0.443/1.910 10.2/2.3 205/72
1×54.6 RM + 3×70 RM + 1×25 RM 37 1048 0.630/0.443/1.200 10.2/3.8 205/107
1×54.6 RM + 3×70 RM + 2×25 RM 45.2 1150 0.630/0.443/1.200 10.2/3.8 205/107
1×54.6 RM + 3×70 RM + 3×25 RM 47.3 1250 0.630/0.443/1.200 10.2/3.8 205/107
1×54.6 RM + 3×95 RM 37.4 1176 0.630/0.320 13.5 240
1×54.6 RM + 3×95 RM + 1×16 RM 41.9 1243 0.630/0.320/1.910 13.5/2.3 240/72
