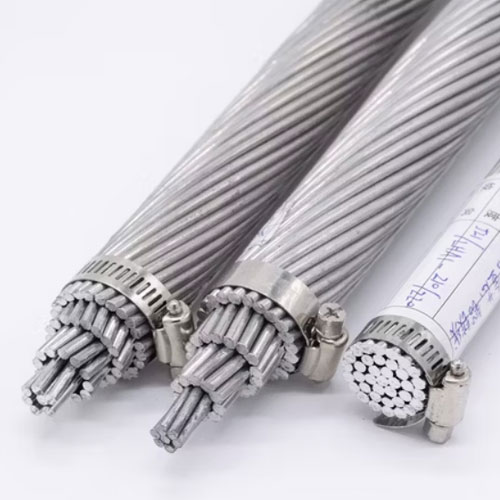

Cable Almelec Aster Conductor
Minimum Order Quantity: 2KM;
Payment Type: T/T, L/C, MoneyGram, Credit Card, Western Union, Cash;
Shipping: Shipping fee and delivery date to be negotiated. Chat with supplier now for more details;
Secure Payments: Every payment you make is secured with strict SSL encryption and PCI DSS data protection protocols;
Delivery Terms: FOB, CFR, EXW, FAS, DDP；
Payment Currency: USD, EUR, CAD, AUD, GBP, CNY
Share:
Product Description
Cable Almelec AAAC Application

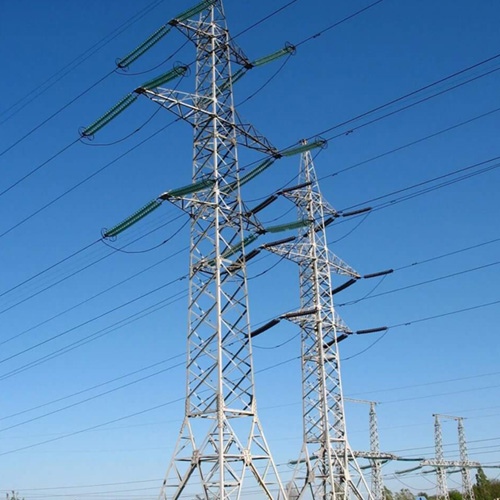

Almelec Cable, it named AAAC conductor (All aluminum alloy conductor)，it is aluminum alloy 6201 wires stranded Conductor. AAAC conductors involved in this standard belongs to ASTER family. These cables are mainly used for overhead lines, in transmission and distribution electrical networks, requiring a high mechanical tension. They are also used as carrier for holding overhead electrical cables. AAAC can be used in Medium and High transmission lines of various voltage levels. Now it has been widely used in power lines across large rivers, heavy ice areas and other special geographical features.

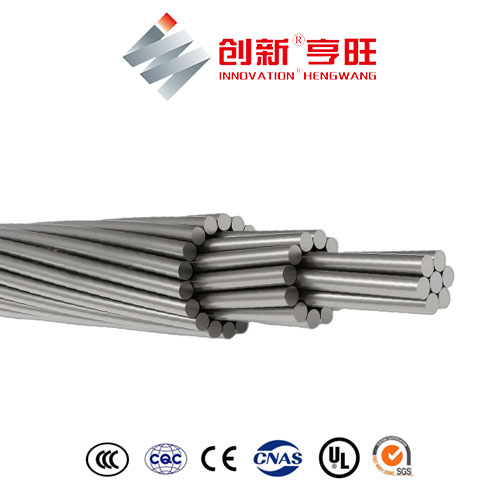

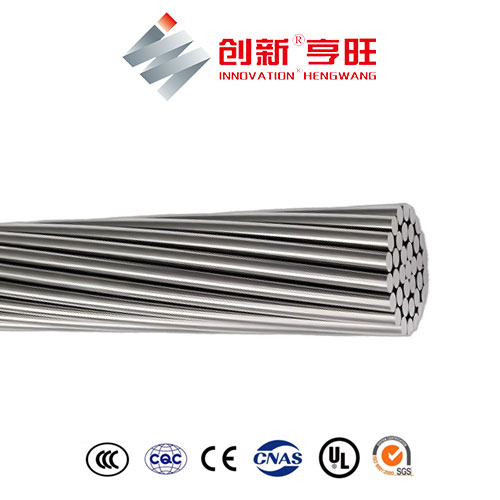

Cable Almelec AAAC Construction

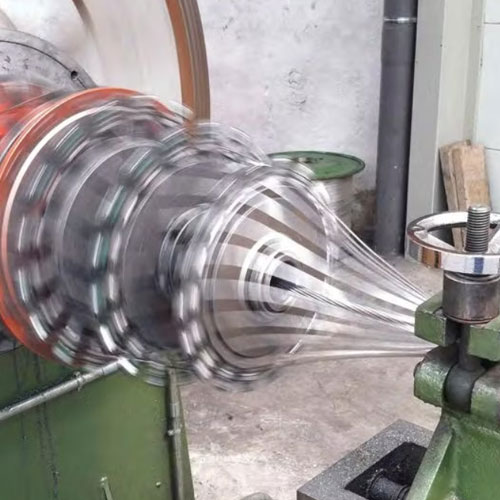

Conductor : All Aluminium alloy(ALMELEC) wires, are stranded in successi-ve layers, in opposite direction to form the stranded conductor.
Cable Almelec AAAC Characteristics
Rated voltage :H.VA:>lkV&<50kV H.VB:>50kV
Cable Almelec AAAC Specifications
Cable Almelec Performance
| name | name | actual section |
no. of wire |
wire diameter |
conductor diameter |
conductor weight appr. |
calc. breaking force |
calc. conductor resistance |
| NF-C 34125 | EN 50182 | mm² | mm | mm | kg/km | kN | Ohm/km | |
| ASTER 22 | 22-AL4 | 22,0 | 7 | 2,00 | 6,00 | 60,0 | 7,15 | 1,498 |
| ASTER 34,4 | 34-AL4 | 34,4 | 7 | 2,50 | 7,50 | 93,5 | 11,17 | 0,959 |
| ASTER 54,6 | 55-AL4 | 54,6 | 7 | 3,15 | 9,45 | 148,9 | 17,73 | 0,604 |
| ASTER 75,5 | 76-AL4 | 75,5 | 19 | 2,25 | 11,3 | 207,4 | 24,55 | 0,438 |
| ASTER 117 | 117-AL4 | 117,0 | 19 | 2,80 | 14,0 | 321,2 | 38,02 | 0,283 |
| ASTER 148 | 148-AL4 | 148,1 | 19 | 3,15 | 15,8 | 406,6 | 48,12 | 0,223 |
| ASTER 181,6 | 182-AL4 | 181,6 | 37 | 2,50 | 17,5 | 500,3 | 59,03 | 0,183 |
| ASTER 228 | 228-AL4 | 227,8 | 37 | 2,80 | 19,6 | 627,6 | 74,04 | 0,146 |
| ASTER 288 | 288-AL4 | 288,3 | 37 | 3,15 | 22,1 | 794,3 | 93,71 | 0,115 |
| ASTER 366 | 366-AL4 | 366,2 | 37 | 3,55 | 24,9 | 1.008,9 | 115,36 | 0,090 |
| ASTER 570 | 570-AL4 | 570,2 | 61 | 3,45 | 31,1 | 1.576,0 | 185,33 | 0,058 |
| ASTER 851 | 851-AL4 | 850,7 | 91 | 3,45 | 38,0 | 2.360,7 | 276,47 | 0,039 |
| ASTER 1144 | 1144-AL4 | 1.143,5 | 91 | 4,00 | 44,0 | 3.173,4 | 360,22 | 0,029 |
| ASTER 1600 | 1600-AL4 | 1.595,9 | 127 | 4,00 | 52,0 | 4.427,5 | 502,72 | 0,021 |
AGS CÂBLE NU ALLIAGE D’ALUMINIUM (AAAC)
| Code Imacab | Section (mm²) | Intensité admissible en ampères (1) | Diamètre extérieur nominal du câble (mm) | Charge de rupture assignée (daN) | Masse approx (Kg/Km) | Résistance électrique Maxi 20°C (Ω/Km) | Intensité (A)(2) | Module d’élasticité (daN/mm²) | Conditionnement standard T : Touret (m) | ||
| Nb fils | Ø des fils (mm) | du câble sans graisse | de la graisse (1) | ||||||||
| AGS 22 | 22 | 7 | 2.00 | 6.0 | 715 | 60.2 | 4 | 1.5 | 115 | 62 | T 7000 |
| AGS 34.4 | 34.4 | 7 | 2.50 | 7.5 | 1115 | 94 | 6 | 0.958 | 145 | 62 | T 10000 |
| AGS 54.6 | 54.6 | 7 | 3.15 | 9.45 | 1775 | 149 | 8 | 0.603 | 190 | 62 | T 6500 |
| AGS 75.5 | 75.5 | 19 | 2.25 | 11.25 | 2455 | 208 | 5 | 0.438 | 240 | 62 | T 6500 |
| AGS 93.3 | 93.3 | 19 | 2.50 | 12.5 | 3031 | 252 | 6 | 0.354 | 270 | 60 | T 5000 |
| AGS 117 | 117 | 19 | 2.80 | 14 | 3800 | 322 | 7 | 0.283 | 315 | 60 | T 4000 |
| AGS 148 | 148 | 19 | 3.15 | 15.75 | 4810 | 407 | 8 | 0.224 | 365 | 60 | T 3000 |
| AGS 181.6 | 181.6 | 37 | 2.50 | 17.5 | 5900 | 500 | 17 | 0.183 | 415 | 57 | T 2500 |
| AGS 226 | 226 | 37 | 2.80 | 19.6 | 7405 | 627 | 21 | 0.146 | 480 | 57 | T 2000 |
| AGS 288 | 288 | 37 | 3.15 | 22.05 | 9370 | 794 | 25 | 0.115 | 550 | 57 | T 1500 |
| AGS 366 | 366 | 37 | 3.55 | 24.85 | 11535 | 1009 | 31 | 0.0905 | 630 | 57 | T 2500 |
| AGS 570 | 570 | 61 | 3.45 | 31.05 | 18530 | 1574 | 57 | 0.0583 | 840 | 54 | T 1700 |
Case Video
Certificate Display
Factory Tour
Why choose us?
Professional
Professional
Fast Delivery
Fast Delivery
Good Price
Good Price
High Quality
High Quality
FAQs
Who are we?
We are Manufacturer more than 21 years experience in Binzhou City, shangdong, China. We start from 2004, sell to Domestic Market(52.00%), Eastern Asia(25.00%), Africa(10.00%), Mid East(6.00%),Southeast Asia(4.00%),South Asia(3.00%). There are total about 301-500 people in our office.
How can we guarantee quality?
What can you buy from us?
House eletric wire, Anti-aging wire, Solar PV cable, Control cable, Shielded computer cable, Low/Medium/High Voltage power cable, Aluminum alloy cable, Aerial insulated cable, Steel core aluminum standed wire, LSZH cable, Fireproof cable, Wind power cable, EV charging cable, Energy storage cable, Mining cable, etc.
Why should you buy from us not from other suppliers?
hengwang cable company has passed ISO9001 quality management system, ISO14001 environmental management system, ISO45001\German TUV certification\CE certification, the company is a finalist for the state power grid and a national”High-tech Enterprise.
What services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW,FAS,DDP； Accepted Payment Currency:USD,EUR,CAD,AUD,GBP,CNY; Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash; Language Spoken:English,Chinese,Japanese,German,Russian
If I need customize Packing Cartons, is that available?
Yes, we have production line for packing box and cartons. we can make it according to your special requirement. If you are interested in our goods , please kindly send an inquiry to us !
