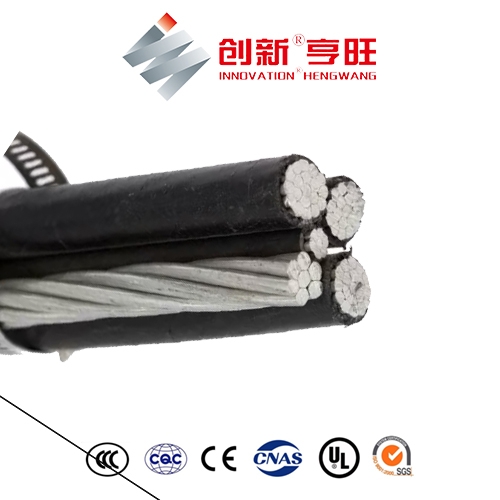

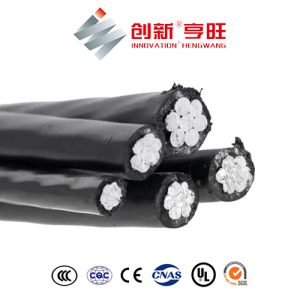

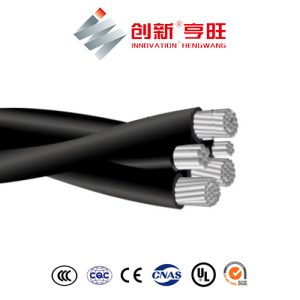

Cable Autoportante CAAI-S

Category: ABC Cable / Aerial Bundled Cable Tags: CAAI-S Cable, cable autoportante caai s, Self-Supporting Cable CAAI-S

Minimum Order Quantity: 2KM;
Payment Type: T/T, L/C, MoneyGram, Credit Card, Western Union, Cash;
Shipping: Shipping fee and delivery date to be negotiated. Chat with supplier now for more details;
Secure Payments: Every payment you make is secured with strict SSL encryption and PCI DSS data protection protocols;
Delivery Terms: FOB, CFR, EXW, FAS, DDP；
Payment Currency: USD, EUR, CAD, AUD, GBP, CNY

Product Description

NTP 370.254 ICEA S-76-474 Cable Autoportante Self-Supporting Cable CAAI-S

CAAI-S Cables Application

The Cable Autoportante CAAI-S is a new type of aerial cable for power transmission. It is extensively used in overhead power transmission line. It improves the safety and reliance of electrified wire netting.

CAAI-S Cables Standard

IEC 60228: Conductors of insulated cables.
ASTM A 475: Zinc coated steel wire strand.
NTP-IEC 60228: Conductors of insulated cables.
NTP 370.254: Cables for overhead distribution networks self-supporting XLPE insulated of rated voltages up to and including 0.6/1 kV.

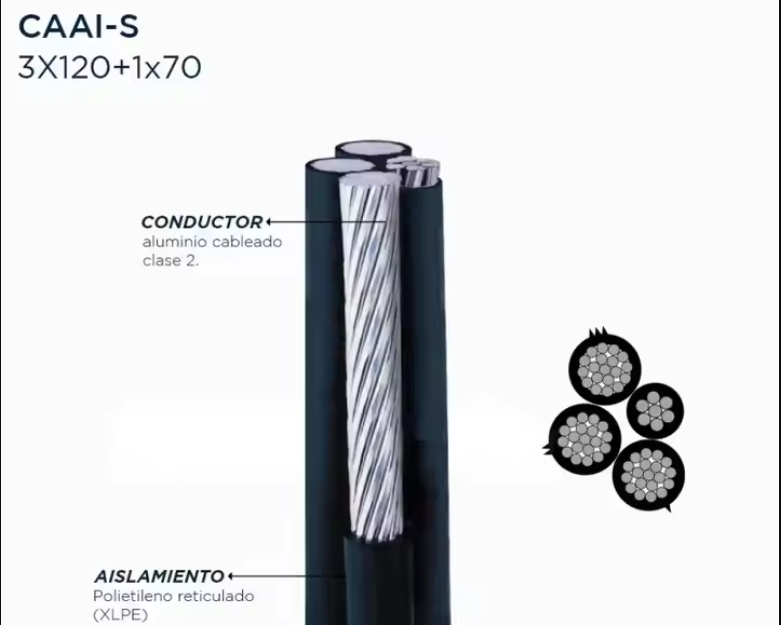

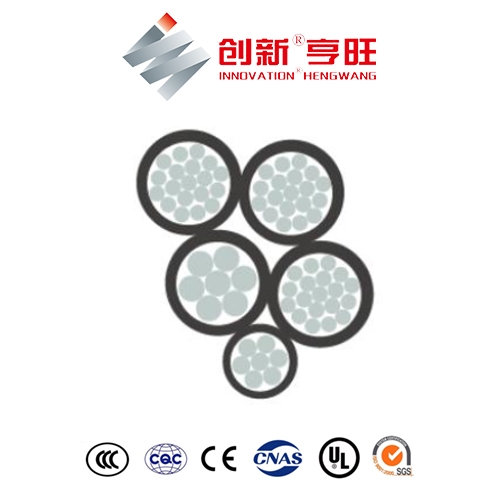

CAAI-S Self-Supporting Aluminum Conductor Cables Construction

Phase conductor: hard drawn aluminum conductor (class 2)
Phase Core identification: colour strip, rib or number
Lighting Conductor: hard drawn aluminum conductor (class 2)
Neutral/Messenger conductor: insulated galvanized steel conductor
Insulation: black crosslinked polyethylene(XLPE)

Cable Autoportante CAAI-S Specifications

FORMACIÓN	Espesor Aislante fase	Dimens. Del portante	Diámetro exterior (*)	Peso nominal	Resistencia Max. c.c. a 20 ºC ohm/km		Reactancia inductiva a 60 hz. ohm/km		Factor caída de tensión (**) V/A. km.
FORMACIÓN	mm	Nº x mm	mm	kg/km	Fase	Alumb.	Fase	Alumbrado	Fase	Alumbrado
2X16	1,14	7×1.03	16	210	1,910	—	0,0957	—	3,493	—
2X25	1,14	7×1.20	18	290	1,200	—	0,0873	—	2,223	—
2X35	1,14	7×1.20	19	360	0,868	—	0,0825	—	1,628	—
2X50	1,52	7×2,03	23	610	0,641	—	0,0832	—	1,225	—
2X70	1,52	7×2,03	27	730	0,443	—	0,0833	—	0,874	—
2X95	1,52	7×2,03	31	890	0,320	—	0,0807	—	0,652	—
2X120	2,03	7×2,03	34	1 090	0,253	—	0,0785	—	0,531	—
2X25+1×16	1,14	7×1.20	18	370	1,200	1,910	0,0925	0,1093	2,229	3,507
2X35+1×16	1,14	7×1.20	19	430	0,868	1,910	0,0862	0,1135	1,632	3,511
2X50+1×16	1,52	7×2,03	23	690	0,641	1,910	0,0843	0,1242	1,227	3,523
2X70+1×16	1,52	7×2,03	27	810	0,443	1,910	0,0822	0,1352	0,872	3,534
2X95+1×16	1,52	7×2,03	31	1 070	0,320	1,910	0,0781	0,1436	0,649	3,543
2X120+1×16	2,03	7×2,03	34	1 170	0,253	1,910	0,0746	0,1487	0,526	3,548
3X16	1,14	7×1.03	16	290	1,910	—	0,1030	—	3,500	—
3X25	1,14	7×1.20	18	400	1,200	—	0,0952	—	2,231	—
3X35	1,14	7×1.20	19	500	0,868	—	0,0906	—	1,636	—
3X50	1,52	7×2,03	23	820	0,641	—	0,0912	—	1,234	—
3X70	1,52	7×2,03	27	1 000	0,443	—	0,0913	—	0,882	—
3X95	1,52	7×2,03	31	1 340	0,320	—	0,0888	—	0,660	—
3X120	2,03	7×2,03	34	1 540	0,253	—	0,0868	—	0,539	—
3X16+1×16	1,14	7×1.03	16	370	1,910	1,910	0,1095	0,1095	3,507	3,507
3X25+1×16	1,14	7×1.20	18	480	1,200	1,910	0,0995	0,1163	2,236	3,514
3X25+2×16	1,14	7×1.20	18	560	1,200	1,910	0,0995	0,1163	2,236	3,514
3X35+1×16	1,14	7×1.20	19	580	0,868	1,910	0,0935	0,1208	1,639	3,519
3X50+1×16	1,52	7×2,03	23	900	0,641	1,910	0,0925	0,1323	1,235	3,531
3X70+1×16	1,52	7×2,03	27	1 080	0,443	1,910	0,0910	0,1440	0,882	3,543
3X95+1×16	1,52	7×2,03	31	1 420	0,320	1,910	0,0875	0,1529	0,659	3,552
3X120+1×16	2,03	7×2,03	34	1 620	0,253	1,910	0,0841	0,1583	0,536	3,558

Name		Phase Cond. Cross Section	Public lighting	Messenger conduct. diam.	Nom. outer diam. (mm)
		(mm²)		(mm)
CAAI-S 0.6/1 kV 2×16 +1x16mm2+P3.2	2	16	1 x 16 mm²	3.2	16.6
CAAI-S 0.6/1 kV 2×16 +2x16mm2+P3.2	2	16	2 x 16 mm²	3.2	18.8
CAAI-S 0,6/1 kV 2×25+1×16 mm2+P3.2	2	25	1 x 16 mm²	3.2	21.3
CAAI-S 0.6/1 kV 2×25+2x16mm2+P3.2	2	25	2 x 16 mm²	3.2	20.5
CAAI-S 0,6/1 kV 2×35+1×16 mm2+P3.2	2	35	1 x 16 mm²	3.2	23.0
CAAI-S 0,6/1 kV 3×16+1×16 mm2+P3.2	3	16	1 x 16 mm²	3.2	18.7
CAAI-S 0.6/1 kV 3×16+1x16mm2+P3.6	3	16	1 x 16 mm²	3.6	19.0
CAAI-S 0.6/1 kV 3×16+2x16mm2+P3.6	3	16	2 x 16 mm²	3.6	22.3
CAAI-S 0,6/1 kV 3×25+1×16 mm2+P3.2	3	25	1 x 16 mm²	3.2	21.3
CAAI-S 0.6/1 kV 3×25+2x10mm2+P3.6	3	25	2 x 10 mm²	3.6	21.6
CAAI-S 0.6/1 kV 3×25+2x16mm2+P3.2	3	25	2 x 16 mm²	3.2	23.3
CAAI-S 0,6/1 kV 3×35+1×16 mm2+P3.2	3	35	1 x 16 mm²	3.2	23.0
CAAI-S 0.6/1 kV 3×35+2x25mm2+P3.6	3	35	2 x 25 mm²	3.6	26.1
CAAI-S 0.6/1 kV 3×50+1×16 mm2+P4.8	3	50	1 x 16 mm²	4.8	26.4
CAAI-S 0.6/1 kV 3×50+2×16 mm2+ P3.2	3	50	2 x 16 mm²	3.2	27.6
CAAI-S 0.6/1 kV 3×50+2×25 mm2+P3.6	3	50	2 x 25 mm²	3.6	28.9
CAAI-S 0,6/1 kV 3×70 +1×25 mm2+P3.6	3	70	1 x 25 mm²	3.6	30.0
CAAI-S 0.6/1 kV 3×70 +2×16 mm2+P6.35	3	70	2 x 16 mm²	6.35	30.4
