Product Description

Cu/XLPE/CTS/PVC/SWA/PVC Al/XLPE/CTS/PVC/SWA/PVC

Uo/U – 3.8/6.6 kV; 6.35/11 kV; 8.7/15 kV;12.7/22 kV; 19/33 kV BS 6622

The three-core cables with insulation of cross-linked polyethylene (XLPE) and longitudinal water-blocking elements ,are designed for transfer and distribution of electrical power with nominal voltage Uo/U 3.6/6; 8.7/15 kV and frequency 50 Hz in urban and district electrical networks and for electrical supply of transformer’s substations, small and medium industrial plants.
They are suitable for use in distribution installations, electric power stations and industrial systems. The cables are for fixed assembly in lines with unlimited difference levels, indoor installations, in cable ducts, conduits and shafts, over shelves and grills directly underground in ditch and outdoor shelter.

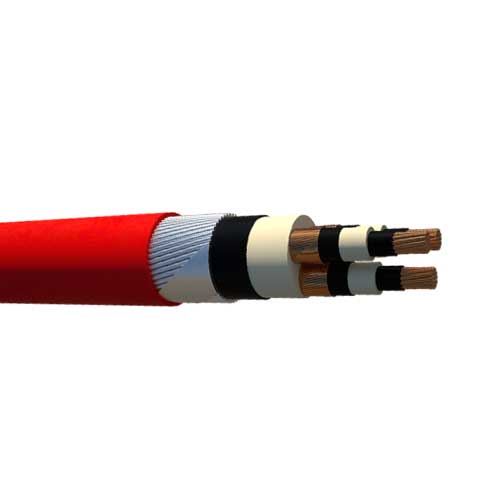

Cu/XLPE/CTS/PVC/SWA/PVC Al/XLPE/CTS/PVC/SWA/PVC

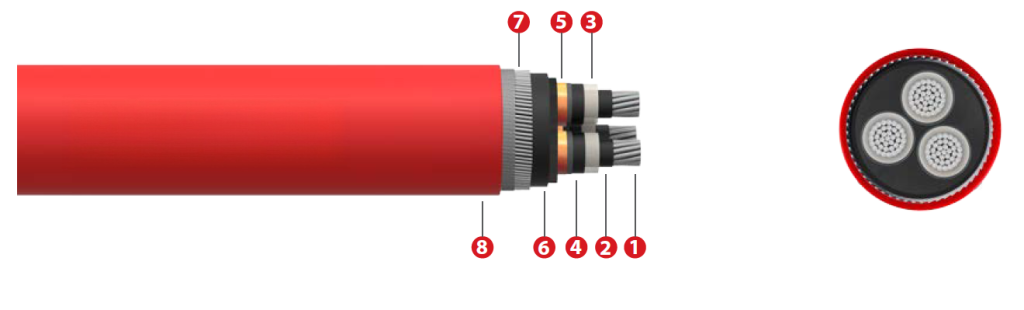

Cable construction
Construction
According to BS 6622
Conductor
Cu or Al stranded compacted, according to BS 6360 (IEC 60228) class 2
Inner semi-conductive layer:
semi-conductive XLPE compound
Insulation
XLPE compound
Outer semi-conductive layer
semi-conductive XLPE compound
Metal screen over each phase
-I option– Cu tapes laid with overlap over each phase -II option – Cu wires laid concen trically
Cable assembly
Three insulated and screened phases are twisted with fillings and tape support
Separating layer
PVC compound – type 9
Armour
Galvanized steel wires, laid concentrically
Sheath
PVC compound – type 9 to BS 6755-4.2
Color
black
Technical data
Conductor resistance at 20°C
According to BS 6360 (IEC228) class 2
Operating temperature
90°C   continuous operation
Overload temperature
130°C  /100h per year max./
Short circuit temperature
250°C  /5 s max./
Nominal voltage Uo/U:
3.8/6.6; 6.35/11; 8.7/15; 12.7/22; 19/33
Highest system voltage Uo/U, no more than
7.2;       12;       17.5; 24;         36
Test voltage AC (≈) – 15 min
15;       25.5;    35; 51;        76kV
Level of partial discharge at kV
7.5;     12.5;     17.5;    25.5; 38 kV
max. 10pC
Bending radius, min
12x D cable
Bending radius adjacent
to joints or terminations,
min
10x D cable
Temperature of laying
no less than 0°C
Temperature of exploita­tion
-30 to 50°C
Force of strain in laying N max.
n-number of cores and
Al cores – 30*n*S core Cu cores – 50*n*S core S-cross section of cores in mm
Cu/XLPE/CTS/PVC/SWA/PVC      Al/XLPE/CTS/PVC/SWA/PVC Construction data
Nominal Cross Section mm² Overall Diameter mm approximately Net Weight kg/km approximately Conductor DC Resistance at (20°C) max. ohm/km Operating Inductance at (mH/km) Operating capacity (uF/km) Current Carrying Capacity in Delivery Lenght (m)
In Ground at 20°C In Air at 30°C
Cu/XLPE/CTS/PVC/SWA/PVC  3,8 / 6,6 kV
3×50 48 4500 0,387 0,33 0,30 208 196 1000
3×70 52 5500 0,268 0,31 0,35 255 249 1000
3×95 56 6500 0,193 0,29 0,39 307 307 1000
3×120 60 7500 0,153 0,28 0,43 353 353 500
3×150 63 8500 0,124 0,28 0,47 396 406 500
3×185 67 10000 0,0991 0,27 0,51 447 464 500
3×240 74 13000 0,0754 0,26 0,55 523 548 500
3×300 80 15500 0,0601 0,26 0,57 581 632 250
3×400 89 19000 0,0470 0,26 0,59 653 726 250
Cu/XLPE/CTS/PVC/SWA/PVC  6,35 / 11 kV
3×50 52 5000 0,387 0,34 0,24 210 206 1000
3×70 56 6000 0,268 0,33 0,27 256 257 1000
3×95 60 7000 0,193 0,31 0,31 307 313 1000
3×120 64 8000 0,153 0,30 0,34 349 360 500
3×150 67 9250 0,124 0,29 0,36 392 410 500
3×185 72 11500 0,0991 0,28 0,40 443 469 500
3×240 78 13500 0,0754 0,27 0,45 513 553 500
3×300 83 16000 0,0601 0,27 0,49 576 635 250
3×400 90 19500 0,0470 0,26 0,54 650 731 250
Cu/XLPE/CTS/PVC/SWA/PVC  8,7 / 15 kV
3×50 57 5500 0,387 0,37 0,19 210 206 1000
3×70 61 6500 0,268 0,35 0,22 256 257 1000
3×95 65 7750 0,193 0,33 0,24 307 313 500
3×120 69 8750 0,153 0,32 0,27 349 360 500
3×150 73 10500 0,124 0,31 0,28 392 410 500
3×185 77 12000 0,0991 0,30 0,31 443 469 500
3×240 83 14500 0,0754 0,29 0,35 513 553 250
3×300 88 17000 0,0601 0,28 0,38 573 635 250
3×400 95 20000 0,0470 0,27 0,42 650 731 250
Cu/XLPE/CTS/PVC/SWA/PVC  12,2 / 22 kV
3×50 62 6250 0,387 0,39 0,17 210 206 1000
3×70 65 7250 0,268 0,36 0,16 256 257 500
3×95 69 8250 0,193 0,35 0,21 307 313 500
3×120 75 10000 0,153 0,33 0,23 349 360 500
3×150 78 11500 0,124 0,32 0,24 392 410 500
3×185 81 13000 0,0991 0,31 0,27 443 469 500
3×240 87 15000 0,0754 0,30 0,30 513 553 250
3×300 92 17500 0,0601 0,29 0,32 576 635 250
3×400 100 21000 0,0470 0,28 0,39 650 731 250
Cu/XLPE/CTS/PVC/SWA/PVC  19 / 33 kV
3×50 75 8500 0,387 0,43 0,13 214 206 500
3×70 78 9500 0,268 0,4 0,14 261 257 500
3×95 82 11000 0,193 0,38 0,16 313 313 500
3×120 86 12000 0,153 0,37 0,17 356 0,6 250
3×150 89 13500 0,124 0,35 0,18 400 410 250
3×185 93 15000 0,0991 0,34 0,20 443 469 250
3×240 99 17000 0,0754 0,33 0,22 513 553 250
3×300 104 19500 0,0601 0,32 0,24 576 635 250
3×400 111 23500 0,0470 0,31 0,26 653 726 250
Nominal Cross Section mm² Overall Diameter mm approximately Net Weight kg/km approximately Conductor DC Resistance at (20°C) max. ohm/km Operating Inductance at (mH/km) Operating capacity (uF/km) Current Carrying Capacity in Delivery Lenght (m)
In Ground at 20°C In Air at 30°C
AL/XLPE/CTS/PVC/SWA/PVC    3,8 / 6,6 kV
3×50 49 3750 0,641 0,33 0,31 162 160 1000
3×70 54 4500 0,443 0,31 0,37 199 199 1000
3×95 57 5000 0,320 0,30 0,41 238 242 1000
3×120 60 5500 0,253 0,29 0,44 271 280 1000
3×150 64 6000 0,206 0,28 0,49 304 318 500
3×185 68 6750 0,164 0,27 0,53 345 365 500
3×240 76 8750 0,125 0,27 0,57 401 431 500
3×300 82 10000 0,100 0,26 0,58 516 649 500
3×400 90 12000 0,0778 0,26 0,61 572 737 250
3×500 97 14000 0,0605 0,25 0,65 638   835 250
AL/XLPE/CTS/PVC/SWA/PVC    6,35 / 11 kV
3×50 53 4250 0,641 0,35 0,25 162 160 1000
3×70 58 4750 0,443 0,33 0,29 199 199 1000
3×95 61 5250 0,320 0,31 0,32 238 242 1000
3×120 65 6000 0,253 0,30 0,35 271 280 500
3×150 68 6750 0,206 0,29 0,38 304 318 500
3×185 73 8000 0,164 0,29 0,41 345 365 500
3×240 79 9250 0,125 0,28 0,46 401 431 500
3×300 84 10500 0,100 0,27 0,50 516 649 500
3×400 92 12500 0,0778 0,26 0,56 572 737 250
3×500 97 14000 0,0605 0,26 0,61 638 835 250
AL/XLPE/CTS/PVC/SWA/PVC    8,7 / 15 kV
3×50 58 4750 0,641 0,37 0,20 162 160 1000
3×70 63 5500 0,443 0,35 0,23 199 199 1000
3×95 66 6000 0,320 0,33 0,25 238 242 500
3×120 70 6750 0,253 0,32 0,27 271 280 500
3×150 75 8000 0,206 0,31 0,30 304 318 500
3×185 79 9000 0,164 0,30 0,32 345 365 500
3×240 84 10000 0,125 0,29 0,35 401 431 500
3×300 89 11500 0,100 0,28 0,39 516 649 250
3×400 97 13500 0,0778 0,27 0,43 572 737 250
3×500 103 15000 0,0605 0,27 0,47 638 835 250
AL/XLPE/CTS/PVC/SWA/PVC    12,7 / 22 kV
3×50 62 5500 0,641 0,39 0,17 162 160 1000
3×70 67 6250 0,443 0,36 0,2 199 199 500
3×95 71 6750 0,320 0,35 0,22 238 242 500
3×120 75 8000 0,253 0,34 0,24 271 280 500
3×150 79 8750 0,206 0,32 0,25 304 318 500
3×185 83 9750 0,164 0,31 0,27 345 365 500
3×240 88 11000 0,125 0,30 0,30 401 431 250
3×300 94 12000 0,100 0,29 0,33 516 649 250
3×400 101 14000 0,0778 0,28 0,37 572 737 250
3×500 107 16000 0,0605 0,28 0,40 638 835 250
AL/XLPE/CTS/PVC/SWA/PVC    19 / 33 kV
3×50 76 7750 0,641 0,43 0,13 162 160 500
3×70 80 8750 0,443 0,4 0,15 199 199 500
3×95 84 9250 0,320 0,38 0,17 238 242 500
3×120 87 10000 0,253 0,37 0,18 271 280 250
3×150 91 11000 0,206 0,36 0,19 304 318 250
3×185 94 12000 0,164 0,34 0,20 345 365 250
3×240 100 13000 0,125 0,33 0,22 401 431 250
3×300 105 14500 0,100 0,32 0,24 516 649 250
3×400 113 16500 0,0778 0,31 0,27 572 737 250
