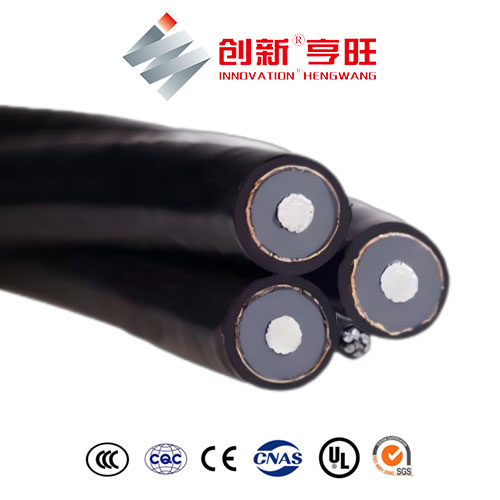

IEC 60502-2 MV ABC Cable
Minimum Order Quantity: 2KM;
Payment Type: T/T, L/C, MoneyGram, Credit Card, Western Union, Cash;
Shipping: Shipping fee and delivery date to be negotiated. Chat with supplier now for more details;
Secure Payments: Every payment you make is secured with strict SSL encryption and PCI DSS data protection protocols;
Delivery Terms: FOB, CFR, EXW, FAS, DDP；
Payment Currency: USD, EUR, CAD, AUD, GBP, CNY
Share:
Product Description
MV ABC Cable Application
11KV 33KV MV ABC Cable Aerial Bundled Cable is a new type of aerial cable for power transmitting. It is extensively used in overhead power transmission line. Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity. It improves the safety and reliance of electrified wire netting. The products primarily used for the distribution of electrical energy under normal conditions of overhead (aerial) installations.The conductors must be installed on insulators and/or spacers adequate for the service voltage. The user may want to give consideration to the dielectric compatibility of the covering, insulator, spacer etc.
Aerial Insulated Cable Description
The conductors are stranded,circular compressed aluminum, aluminum-alloy, copper. The conductor screen is the extruded Semi-conducting conductor shield in Black. And the outer Insulation is mainly thermoplastic polyethylene (PE) or cross-linked polyethylene (XLPE) in Black with Weather or UV resistant. This standard covers both thermoplastic and cross linked polyethylene constructions, rated for 75°C or 90°C normal service temperature.

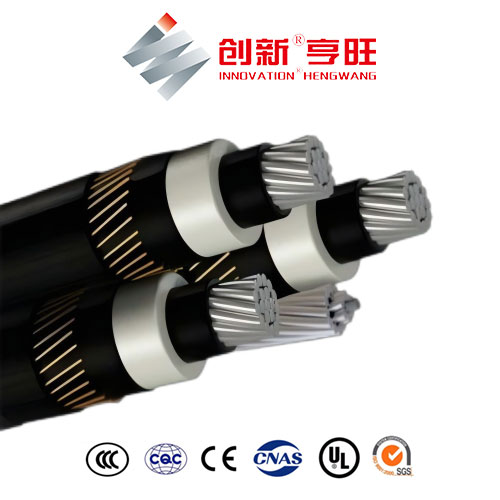

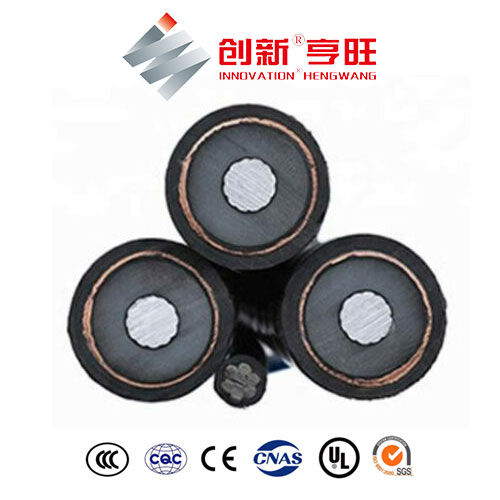

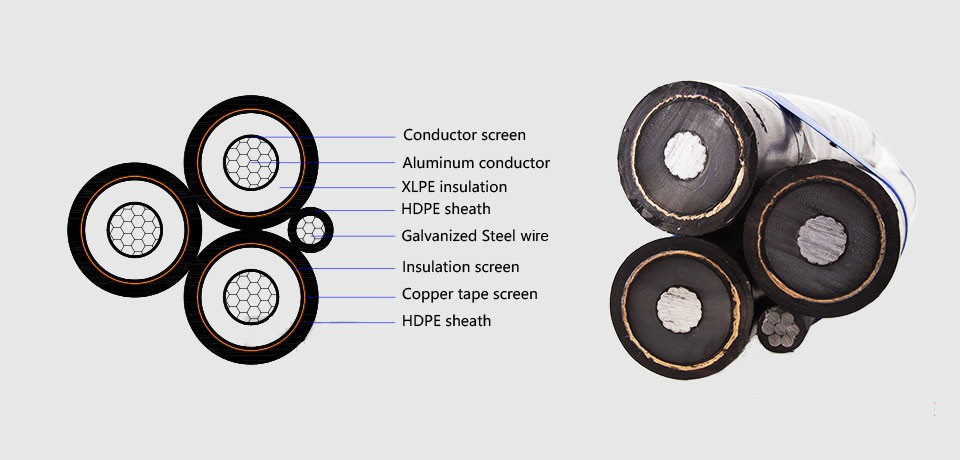

Screened MV ABC Cable Construction
| Phase Conductor | Circular Compacted Stranded H68 Aluminium ( Class 2) |
| Conductor Screen | Extruded Semi-conductive Layer. |
| Insulation | XLPE. |
| Insulation Screen | Extruded Semi-conductive Layer. |
| Metallic Screen | Copper wire screen or copper tape screen |
| Separator | Semi-conductive swellable tape. |
| Outer Sheath | HDPE. |
| Support Conductor | Galvanized steel wires. |
| Assembly | XLPE insulated screened cores are bundled around the galvanized steel wires in a right hand lay |
6.35/11kV 19/33kV Screened MV ABC Cable–Aerial Bundled Cables to IEC 60502
MV Overhead insulated Cable Specifications
6.35/11 kV ABC for Overhead Distribution Lines
| Number of Cores xNominal Cross Section |
Phase Conductor | Messenger Suspension Unit | Continuous current rating at 300C ambient temp |
||||
| Stranding | Nominal Sectional Area | Maximum Conductor Resistance |
Stranding | Nominal Sectional Area | Breaking Load |
||
| No.×mm^2 | No.×mm | mm^2 | Ω/Km | No.×mm | mm^2 | KN | A |
| 3X50 + 1X25 | 19/1.78 | 50 | 0.641 | 7/3.0 | 50 | 60 | 116 |
| 3X70 + 1X50 | 19/.14 | 70 | 0.443 | 7/3.15 | 50 | 62 | 210 |
| 3X95+ 1X50 | 19/2.52 | 95 | 0.32 | 7/3.0 | 50 | 60 | 173 |
| 3X185+1X120 | 37/2.52 | 185 | 0.164 | 7/4.67 | 120 | 150 | 259 |
| 3X150 +1X50 | 37/2.25 | 150 | 0.206 | 7/3.15 | 50 | 62 | 365 |
| 3X240 +1X50 | 61/2.25 | 240 | 0.125 | 7/3.15 | 50 | 62 | 500 |
Other cross-sections can be offered upon request.
IEC 60502 19/33 kV ABC for Overhead Distribution Lines
| Number of Cores xNominal Cross Section |
Phase Conductor | Messenger Suspension Unit | Continuous current rating at 300C ambient temp |
||||
| Stranding | Nominal Sectional Area | Maximum Conductor Resistance |
Stranding | Nominal Sectional Area | Breaking Load |
||
| No.×mm^2 | No.×mm | mm^2 | Ω/Km | No.×mm | mm^2 | KN | A |
| 3X50 + 1X50 | 19/1.78 | 50 | 0.641 | 7/3.0 | 50 | 60 | 165 |
| 3X150+ 1X50 | 37/2.25 | 150 | 0.206 | 7/3.0 | 50 | 60 | 315 |
| 3X185+1X70 | 37/2.52 | 185 | 0.164 | 7/3.57 | 70 | 91 | 355 |
| 3X70 +1X50 | 19/2.14 | 7 | 0.443 | 7/3.15 | 50 | 62 | 250 |
| 3X150 +1X50 | 37/2.25 | 150 | 0.206 | 7/3.15 | 50 | 62 | 370 |
Other cross-sections can be offered upon request.
GB/T 14049 (Equal to IEC 60502-2) Aerial Insulated Cables For Rated Voltage of 10kV
| Type | No. of Cores | Nominal size mm2 |
| CU/XLPE,AAC/XLPE,AAAC/XLPE | 1 | 10 ~ 400 |
| 3 | 25 ~ 400 | |
| 3+k(A) or 3+k(B) | 25 ~ 400 ; k:25~120 | |
| CU/PE,AAC/PE,AAAC/PE,CU/XLPE,AAC/XLPE,AAAC/XLPE | 1 | 10 ~ 400 |
| AAC/XLPE,AAAC/XLPE | 3 | 25 ~ 400 |
| 3+k(A) or 3+k(B) | 25 ~ 400 ; k:25~120 | |
| The k is a load-bearing core. (A) means steel carrying stranded wire, (B) means aluminum alloy carrying stranded wire. | ||
10kV Aerial Copper Insulated Cables
| Nominal Size | Min. No. of Wires |
Approx. Diameter of Conductor | Min. Thickness of Conductor screen (Approx.) |
Nominal Thickness of Insulation | Nominal Thickness of Insulation Screen | Max. DC Resistance at 20 0C | Min. Breaking Load | ||
| Reduced | Nominal | Hard Copper | Soft Copper | Hard Copper | |||||
| mm2 | No. | mm | mm | mm | mm | mm | Ω/km | Ω/km | N |
| 10 | 6 | 3.8 | 0.5 | – | 3.4 | – | – | 1.830 | – |
| 16 | 6 | 4.8 | 0.5 | – | 3.4 | – | – | 1.150 | – |
| 25 | 6 | 6.0 | 0.5 | 2.5 | 3.4 | 1.0 | 0.749 | 0.727 | 8465 |
| 35 | 6 | 7.0 | 0.5 | 2.5 | 3.4 | 1.0 | 0.540 | 0.524 | 11731 |
| 50 | 6 | 8.3 | 0.5 | 2.5 | 3.4 | 1.0 | 0.399 | 0.387 | 16052 |
| 70 | 12 | 10.0 | 0.5 | 2.5 | 3.4 | 1.0 | 0.276 | 0.268 | 23461 |
| 95 | 15 | 11.6 | 0.6 | 2.5 | 3.4 | 1.0 | 0.199 | 0.193 | 31759 |
| 120 | 18 | 13.0 | 0.6 | 2.5 | 3.4 | 1.0 | 0.158 | 0.153 | 39911 |
| 150 | 18 | 14.6 | 0.6 | 2.5 | 3.4 | 1.0 | 0.128 | – | 49505 |
| 185 | 30 | 16.2 | 0.6 | 2.5 | 3.4 | 1.0 | 0.1021 | – | 61846 |
| 240 | 34 | 18.4 | 0.6 | 2.5 | 3.4 | 1.0 | 0.0777 | – | 79823 |
| 300 | 34 | 20.6 | 0.6 | 2.5 | 3.4 | 1.0 | 0.0619 | – | 99788 |
| 400 | 53 | 23.8 | 0.6 | 2.5 | 3.4 | 1.0 | 0.0484 | – | 133040 |
10kV Aerial Aluminium Insulated Cables
| Nominal Size | Min. No. of Wires |
Approx. Diameter of Conductor | Min. Thickness of Conductor Screen (Approx.) |
Nominal Thickness of Insulation | Nominal Thickness of Insulation Screen | Max. DC Resistance at 20 0C |
Min. Breaking Load | |||
| Reduced | Nominal | AAC | AAAC | AAC | AAAC | |||||
| mm2 | No. | mm | mm | mm | mm | mm | Ω/km | Ω/km | N | N |
| 10 | 6 | 3.8 | 0.5 | – | 3.4 | – | 3.080 | 3.574 | – | – |
| 16 | 6 | 4.8 | 0.5 | – | 3.4 | – | 1.910 | 2.217 | – | – |
| 25 | 6 | 6.0 | 0.5 | 2.5 | 3.4 | 1.0 | 1.200 | 1.393 | 3762 | 6284 |
| 35 | 6 | 7.0 | 0.5 | 2.5 | 3.4 | 1.0 | 0.868 | 1.007 | 5177 | 8800 |
| 50 | 6 | 8.3 | 0.5 | 2.5 | 3.4 | 1.0 | 0.641 | 0.744 | 7011 | 12569 |
| 70 | 12 | 10.0 | 0.5 | 2.5 | 3.4 | 1.0 | 0.443 | 0.514 | 10354 | 17596 |
| 95 | 15 | 11.6 | 0.6 | 2.5 | 3.4 | 1.0 | 0.320 | 0.371 | 13727 | 23880 |
| 120 | 18 | 13.0 | 0.6 | 2.5 | 3.4 | 1.0 | 0.253 | 0.294 | 17339 | 30164 |
| 150 | 18 | 14.6 | 0.6 | 2.5 | 3.4 | 1.0 | 0.206 | 0.239 | 21033 | 37706 |
| 185 | 30 | 16.2 | 0.6 | 2.5 | 3.4 | 1.0 | 0.164 | 0.190 | 26732 | 46503 |
| 240 | 34 | 18.4 | 0.6 | 2.5 | 3.4 | 1.0 | 0.125 | 0.145 | 34679 | 60329 |
| 300 | 34 | 20.6 | 0.6 | 2.5 | 3.4 | 1.0 | 0.100 | 0.116 | 43349 | 75411 |
| 400 | 53 | 23.8 | 0.6 | 2.5 | 3.4 | 1.0 | 0.0778 | 0.0904 | 55707 | 100548 |
22.9kV ACSR/AW-OC Aerial Insulated Cables
| Size (mm2) |
No. and Dia. of Wires |
Conductor Diameter | Insulation Thickness | Cable Diameter | Rated Strength |
Weight | |
| AL | St | ||||||
| No. | No. /mm | mm | mm | mm | kgf | kg/km | |
| 22.9 kV ACSR/AW-OC/XLPE | |||||||
| 32 | 6/SB | 1/2.6 | 7.2 | 3.0 | 13.2 | 1090 | 210 |
| 58 | 6/SB | 1/3.5 | 9.7 | 3.0 | 15.7 | 1900 | 330 |
| 95 | 6/SB | 1/3.5 | 12.0 | 3.5 | 19.0 | 2360 | 530 |
| 160 | 18/SB | 1/3.2 | 15.4 | 4.0 | 23.4 | 3080 | 730 |
| 240 | 18/SB | 1/4.0 | 18.9 | 4.0 | 27.0 | 4500 | 1040 |
