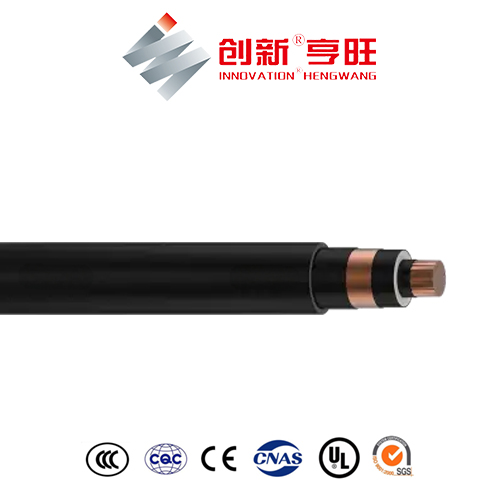

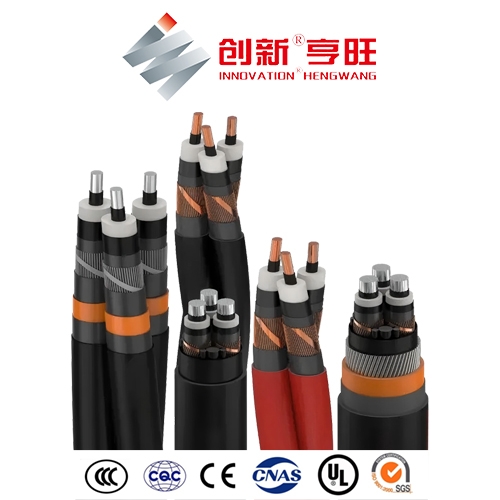

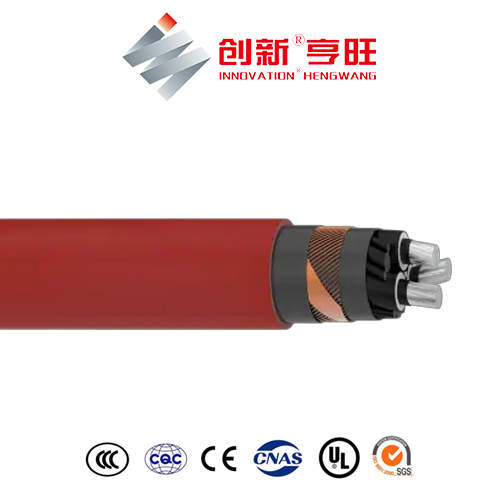

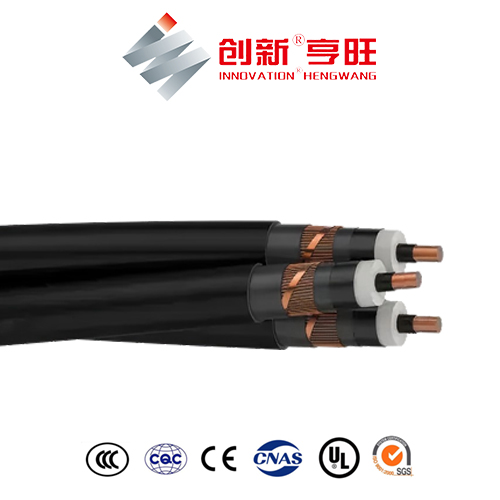

MV Power Cables 6 – 35 KV PVC and XLPE Insulated
Minimum Order Quantity: 2KM;
Payment Type: T/T, L/C, MoneyGram, Credit Card, Western Union, Cash;
Shipping: Shipping fee and delivery date to be negotiated. Chat with supplier now for more details;
Secure Payments: Every payment you make is secured with strict SSL encryption and PCI DSS data protection protocols;
Delivery Terms: FOB, CFR, EXW, FAS, DDP；
Payment Currency: USD, EUR, CAD, AUD, GBP, CNY
Share:
Product Description
MV Power Cables 6 – 35 KV PVC and XLPE Insulated
Commonly referred to as MV cables, medium voltage cable solutions include but aren’t limited to non-shielded and copper tape shielded type designs commonly found in many commercial and industrial applications.
MV Power Cables
Medium-voltage cables are mainly used to build weather-resistant networks and to improve the reliability of networks. The use of medium-voltage cables enables the transfer of power networks underground, which has proven to be a reliable method of avoiding any power failures caused by storms.
We offer a comprehensive range of Medium Voltage (MV) cables manufactured to various International Standards, British, European, including IEC 60502, BS6622. This British Standard sets out the specifications and required tests for single-core and three core armored cables with thermosetting insulation with a voltage rating ranging from 3.8/6.6kV up to 19/33kV. These cables are designed for a maximum operating temperature of 90oC for use in fixed installations including networks and industrial installations.
Medium Voltage Cable Construction:
| MV Cable Layer | MV Cable Materials |
| Conductor | Copper or Aluminium – Class 1 solid, Class 2 stranded (circular, circular compacted, sectorial). Some flexible MV cables for dynamic equipment are also available. |
| Optional: Conductor Waterblocking | Swellable powders or swellable yarns in stranded interstices |
| Conductor Screen | Semi-Conductive Layer |
| Insulation | XLPE (Cross-linked Polyethylene) or EPR (Ethylene Propylene Rubber) |
| Insulation Screen | Semi-Conductive Layer |
| Optional: Waterblocking – Longitudinal | Swellable powders or tape |
| Metallic Screen | Copper Wires and/or Copper Tape (around individual cores) |
| Optional: Waterblocking – Longitudinal | Swellable Tape |
| Optional: Inner Sheath | Applied where Armour is also applied. PVC or LSZH compound |
| Optional: Armour | Single Core: Aluminium Wires / Tape Multi-Core: Galvanised Steel Wires / Tape (Wires can be circular or flat, tapes can be single or double layer flat or corrugated) |
| Optional: Waterblocking – Radial | Aluminium/PET Tape with the aluminum side tightly bonded to outer sheath |
| Outer Sheath | LDPE, MDPE (Low/Medium Density Polyethylene), PVC (Polyvinyl Chloride), LSZH (Low Smoke Zero Halogen). Additives to offer resistance to UV, oils & greases, water, flames, termites, and other environmental factors can be added as required. |
Medium Voltage Cable Standards:
| MV Cable Standard | MV Standard Description |
| IEC 60502-2 | Cables with extruded insulation with voltage rating between 6kV and 30kV |
| BS6622 | Armoured cable with PVC outer sheathing and voltage rating from 3.3/6kV to 19/33kV |
| BS7835 | Armoured cable with LSZH outer sheathing and voltage rating from 3.3/6kV to 19/33kV |
| BS7870-4.10 | Single core cables for distribution utilities with extruded insulation up to and including 11kV and 33kV |
| HD620 | Cables with extruded insulation and voltage ratings 3.6/6 (7.2)kV to 20.8/36 (42)kV (often seen in conjunction with IEC60502-2) |
| DIN VDE 0276 Part 620 | Distribution cables of nominal voltages 3.6kV to 20.8/36kV |
MV Cable Nomenclature:
MV cables can be referred to by their standard and the materials used (eg: Cu for Copper, XLPE for Cross-linked Polyethylene) but they’re often referred to by country-specific naming conventions.
German MV Cable Nomenclature is:
| N | MV cable according to DIN VDE 0276 |
| A | Aluminium (Al) conductor |
| [blank] | Copper (Cu) conductor |
| 2X | Cross-linked polyethylene (XLPE) insulation |
| S | Screen of copper wires and copper tape, helically wound |
| SE | Screen of copper wires and copper tape over each core, helically wound |
| (F) | Longitudinal water tightness |
| (FL) | Longitudinal and transversal (Radial) water tightness |
| Y | Polyvinyl Chloride (PVC) sheath |
| 2Y | Polyethylene (PE) sheath |
| H | Low Smoke Zero Halogen (LSZH) sheath |
All MV Cable datasheets will provide guidance on application, construction & materials, relevant standards, cable sizes, and electrical characteristics. If further information is required to support specification, or the parameters required do not match any of the listed cable PDF datasheets, please speak to a member of the team who will be able to assist you.
MV Power Cables Specifications
Product Type
| General type | VDE type | Description | Application |
| CU/XLPE/PVC (AL/XLPE/PVC) | N2XSY N2XSEY (NA2XSY NA2XSEY) | Cu conductor（Al conductor）XLPE insulated PVC sheathed power cable | Laying indoors, in tunnel, fixed on the bracket, pipe and buried in the soil, the cable cannot bear external mechanical forces. |
| CU/XLPE/PE (AL/XLPE/PE) | N2XS2Y N2XSE2Y (NA2XS2Y NA2XSE2Y) | Cu conductor（Al conductor）XLPE insulated PE sheathed power cable | |
| CU/XLPE/STA/PVC (AL/XLPE/STA/PVC) | N2XSBY N2XSEBY (NA2XSBY NA2XSEBY) | Cu conductor（Al conductor）XLPE insulated double of steel-tape armored PVC sheathed power cable | For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force. |
| CU/XLPE/STA/PE (AL/XLPE/STA/PE) | N2XSB2Y N2XSEB2Y (NA2XSB2Y NA2XSEB2Y) | Cu conductor（Al conductor）XLPE insulated double of steel-tape armored PE sheathed power cable | |
| CU/XLPE/ATA/PVC (AL/XLPE/ATA/PVC) | N2XSBY N2XSEBY (NA2XSBY NA2XSEBY) | Cu conductor（Al conductor）XLPE insulated double of aluminium-tape armored PVC sheathed power cable | |
| CU/XLPE/SWA/PVC (AL/XLPE/SWA/PVC) | N2XSRY N2XSERY (NA2XSRY NA2XSERY) | Cu conductor（Al conductor）XLPE insulated steel-wire armored PVC sheathed power cable | For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force |
| CU/XLPE/SWA/PE (AL/XLPE/SWA/PE) | N2XSR2Y N2XSER2Y (NA2XSR2Y NA2XSER2Y) | Cu conductor（Al conductor）XLPE insulated steel-wire armored PE sheathed power cable | |
| CU/XLPE/AWA/PVC (AL/XLPE/AWA/PVC) | N2XSRY N2XSERY (NA2XSRY NA2XSERY) | Cu conductor（Al conductor）XLPE insulated aluminium-wire armored PE sheathed power cable |
MV Power Cables Range of production
| No.of cores | 3.6/6（7.2） | 6/6(7.2) 6/10（12.0） | 8.7/10(12) 8.7/15(17.5) | 12/20(24.0) | 18/30(36.0) | 21/35(40.5) | 26/35(40.5) |
| 1 | 25-630 | 25-630 | 25-630 | 25-630 | 25-630 | 50-630 | 50-630 |
| 25-630 | 25-630 | 25-630 | 25-630 | 25-630 | 50-630 | 50-630 | |
| 25-630 | 25-630 | 25-630 | 25-630 | 25-630 | 50-630 | 50-630 | |
| 25-630 | 25-630 | 25-630 | 25-630 | 25-630 | 50-630 | 50-630 | |
| 25-630 | 25-630 | 25-630 | 25-630 | 25-630 | 50-630 | 50-630 | |
| 25-630 | 25-630 | 25-630 | 25-630 | 25-630 | 50-630 | 50-630 | |
| 3 | 16-630 | 16-630 | 16-630 | 16-630 | 16-630 | 50-400 | 50-400 |
| 16-630 | 16-630 | 16-630 | 16-630 | 16-630 | 50-400 | 50-400 | |
| 16-630 | 16-630 | 16-630 | 16-630 | 16-630 | 50-400 | 50-400 | |
| 16-630 | 16-630 | 16-630 | 16-630 | 16-630 | 50-400 | 50-400 | |
| 16-630 | 16-630 | 16-630 | 16-630 | 16-630 | 50-400 | 50-400 | |
| 16-630 | 16-630 | 16-630 | 16-630 | 16-630 | 50-400 | 50-400 |
Product parameters for Single core MV Power Cables
| Specification mm2 |
Outer diameter mm |
Approx. outer diameter of cable mm |
Approx. weight of cable kg/km |
Max. D.C. resistance of conductor at 20℃ Ω/km |
||
| Cu | Al | Cu | Al | |||
| 1×25 | 6 | 20 | 604.7 | 450.1 | 0.727 | 1.2 |
| 1×35 | 7 | 21 | 721.2 | 504.7 | 0.524 | 0.868 |
| 1×50 | 8.4 | 22.4 | 893.2 | 583.9 | 0.387 | 0.641 |
| 1×70 | 10 | 24 | 1115.2 | 682.1 | 0.268 | 0.443 |
| 1×95 | 11.5 | 25.5 | 1378.8 | 791.1 | 0.193 | 0.32 |
| 1×120 | 13 | 27 | 1643.1 | 900.7 | 0.153 | 0.253 |
| 1×150 | 14.5 | 28.6 | 1957.6 | 1029.5 | 0.124 | 0.206 |
| 1×185 | 16.2 | 30.4 | 2323.3 | 1178.7 | 0.0991 | 0.164 |
| 1×240 | 18.4 | 32.7 | 2885.5 | 1400.6 | 0.0754 | 0.125 |
| 1×300 | 20.5 | 35 | 3489.8 | 1633.7 | 0.0601 | 0.1 |
| 1×400 | 23.5 | 38.2 | 4483.8 | 2009 | 0.047 | 0.0778 |
| 1×500 | 26.5 | 41.4 | 5477.7 | 2384.2 | 0.0366 | 0.0605 |
| 1×630 | 30 | 45.1 | 6759.4 | 2861.6 | 0.0283 | 0.0469 |
Product parameters for Three core MV Power Cables
| Specification mm2 |
Outer diameter mm |
Approx. outer diameter of cable mm |
Approx. weight of cable kg/km |
Max. D.C. resistance of conductor at 20℃ Ω/km |
||
| Cu | Al | Cu | Al | |||
| 3×25 | 6 | 40.2 | 1904.8 | 1438.4 | 0.727 | 1.2 |
| 3×35 | 7 | 42.6 | 2304.5 | 1651.6 | 0.524 | 0.868 |
| 3×50 | 8.4 | 45.8 | 2884.5 | 1951.8 | 0.387 | 0.641 |
| 3×70 | 10 | 49.5 | 3619.7 | 2313.9 | 0.268 | 0.443 |
| 3×95 | 11.5 | 52.9 | 4490.7 | 2718.6 | 0.193 | 0.32 |
| 3×120 | 13 | 56.4 | 5382.6 | 3144.1 | 0.153 | 0.253 |
| 3×150 | 14.5 | 59.8 | 6381.6 | 3583.5 | 0.124 | 0.206 |
| 3×185 | 16.2 | 63.7 | 7570.5 | 4119.5 | 0.0991 | 0.164 |
| 3×240 | 18.4 | 68.8 | 9341.8 | 4864.9 | 0.0754 | 0.125 |
| 3×300 | 20.5 | 73.6 | 11270.6 | 5674.5 | 0.0601 | 0.1 |
| 3×400 | 23.5 | 80.5 | 14378.7 | 6917.1 | 0.047 | 0.0778 |
| 3×500 | 26.5 | 87.5 | 17555.6 | 8404.5 | 0.0366 | 0.0605 |
