N2XS2Y Cable

Category: Low & Medium Voltage Cable Tags: 12/20 kV, 18/30 kV, Power Cables 6 - 30 KV PVC and XLPE Insulated, XLPE 6/10 kV

Minimum Order Quantity: 2KM;
Payment Type: T/T, L/C, MoneyGram, Credit Card, Western Union, Cash;
Shipping: Shipping fee and delivery date to be negotiated. Chat with supplier now for more details;
Secure Payments: Every payment you make is secured with strict SSL encryption and PCI DSS data protection protocols;
Delivery Terms: FOB, CFR, EXW, FAS, DDP；
Payment Currency: USD, EUR, CAD, AUD, GBP, CNY

Product Description

N2XS2Y Cable| XLPE 6/10 kV, 12/20 kV, 18/30 kV) Insulated Single-Core Cable with PE Outer Sheath

N2XS2Y Cable Application

To be laid directly in ground, outdoors, indoors and in cable ducts.

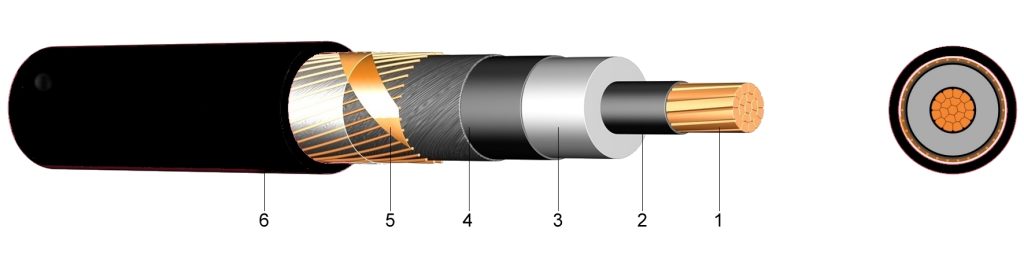

N2XS2Y Cable Construction

1…..stranded (RM) bare copper
2…..inner layer of semi-conducting material
3…..core insulation of cross-linked polyethylene
4…..outer layer of semi-conducting material
5…..screen of copper wires
6…..outer sheath of polyethylene (PE), black

N2XS2Y Cable Standards

DIN VDE 0276-620 HD 620 S1: 1996 DIN EN 60228 class 2 (construction)

N2XS2Y Cable Technical data

Test voltage	6 / 10 kV	[kV]	21 / 5 min.
	12 / 20 kV	[kV]	42 / 5 min.
	18 / 30 kV	[kV]	63 / 5 min.
Temperature range	in motion		-20°C till +90°C
	fixed		-20°C till +90°C
Operating temperature	short circuit	°C	250
Short circuit time	max.	[sec]	5
Bending radius	min.	x diameter	15

N2XS2Y Cable Specifications

Number of cores and nominal cross section mm²	Copper figure kg/km	Overall diameter appr. mm	Overall diameter max. value appr. mm	Weight appr. kg / km	Current carrying capacity ground A*	Current carrying capacity air A*
*6 / 10 kV*
1 x 35 RM/16	518,40	23	28	820	187	197
1 x 50 RM/16	662,40	24	29	960	220	236
1 x 70 RM/16	854,40	26	31	1.150	269	292
1 x 95 RM/16	1.094,40	27	32	1.450	320	358
1 x 120 RM/16	1.334,40	29	34	1.700	363	413
1 x 150 RM/25	1.723,20	30	35	2.000	405	468
1 x 185 RM/25	2.059,20	32	37	2.350	456	535
1 x 240 RM/25	2.587,20	34	39	2.900	526	631
1 x 300 RM/25	3.163,20	36	41	3.550	591	722
1 x 400 RM/35	4.233,60	40	45	4.500	662	827
1 x 500 RM/35	5.193,60	43	48	5.550	744	949

Number of cores and nominal cross section mm²	Copper figure kg/km	Overall diameter appr. mm	Overall diameter max. value appr. mm	Weight appr. kg / km	Current carrying capacity ground A*	Current carrying capacity air A*
*12 / 20 kV*
1 x 35 RM/16	518,40	27	32	1.000	189	200
1 x 50 RM/16	662,40	28	33	1.150	222	239
1 x 70 RM/16	854,40	30	35	1.350	271	297
1 x 95 RM/16	1.094,40	31	36	1.600	323	361
1 x 120 RM/16	1.334,40	33	38	1.850	367	416
1 x 150 RM/25	1.723,20	34	39	2.250	409	470
1 x 185 RM/25	2.059,20	36	41	2.600	461	538
1 x 240 RM/25	2.587,20	39	44	3.150	532	634
1 x 300 RM/25	3.163,20	41	46	3.800	599	724
1 x 400 RM/35	4.233,60	44	49	4.750	671	829
1 x 500 RM/35	5.193,60	47	52	5.800	754	953

Number of cores and nominal cross section mm²	Copper figure kg/km	Overall diameter appr. mm	Overall diameter max. value appr. mm	Weight appr. kg / km	Current carrying capacity ground A*	Current carrying capacity air A*
*18 / 30 kV*
1 x 50 RM/16	662,40	33	38	1.350	225	241
1 x 70 RM/16	854,40	35	40	1.600	274	299
1 x 95 RM/16	1.094,40	36	41	1.900	327	363
1 x 120 RM/16	1.334,40	38	43	2.200	371	418
1 x 150 RM/25	1.723,20	39	44	2.550	414	472
1 x 185 RM/25	2.059,20	41	46	2.950	466	539
1 x 240 RM/25	2.587,20	43	48	3.500	539	635
1 x 300 RM/25	3.163,20	46	51	4.150	606	725
1 x 400 RM/35	4.233,60	49	54	5.150	680	831
1 x 500 RM/35	5.193,60	52	57	6.200	765	953

Case Video

Certificate Display

Factory Tour

Why choose us?

Professional

20+ years cable export experience, with full knowledges of all kinds STANDARDS, we have EN/ES/FR sales for deep communications.

Professional

20+ years cable export experience, with full knowledges of all kinds STANDARDS, we have EN/ES/FR sales for deep communications.

Fast Delivery

Our factory has sufficient capacity, and we can generally complete production for most orders within 2 ~ 3 weeks, maximum 1 ~ 1.5 months.

Fast Delivery

Our factory has sufficient capacity, and we can generally complete production for most orders within 2 ~ 3 weeks, maximum 1 ~ 1.5 months.

Good Price

Relying on robust Chinese cable manufacturing supply chain enables us to maintain low costs, to offer competitive cable products to our customers.

Good Price

Relying on robust Chinese cable manufacturing supply chain enables us to maintain low costs, to offer competitive cable products to our customers.

High Quality

We have complete cable type tests and a quality inspection process, supporting customer or third-party quality acceptance to ensure we deliver high-quality products.

High Quality

We have complete cable type tests and a quality inspection process, supporting customer or third-party quality acceptance to ensure we deliver high-quality products.

FAQs

Who are we?

We are Manufacturer more than 21 years experience in Binzhou City, shangdong, China. We start from 2004, sell to Domestic Market(52.00%), Eastern Asia(25.00%), Africa(10.00%), Mid East(6.00%),Southeast Asia(4.00%),South Asia(3.00%). There are total about 301-500 people in our office.

How can we guarantee quality?

Always a pre-production sample before mass production; Always have strict control of the quality from the raw material to finished products according to ISO9001 QC system before shipment.

What can you buy from us?

House eletric wire, Anti-aging wire, Solar PV cable, Control cable, Shielded computer cable, Low/Medium/High Voltage power cable, Aluminum alloy cable, Aerial insulated cable, Steel core aluminum standed wire, LSZH cable, Fireproof cable, Wind power cable, EV charging cable, Energy storage cable, Mining cable, etc.

Why should you buy from us not from other suppliers?

hengwang cable company has passed ISO9001 quality management system, ISO14001 environmental management system, ISO45001\German TUV certification\CE certification, the company is a finalist for the state power grid and a national”High-tech Enterprise.

What services can we provide?

Accepted Delivery Terms: FOB,CFR,EXW,FAS,DDP； Accepted Payment Currency:USD,EUR,CAD,AUD,GBP,CNY; Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash; Language Spoken:English,Chinese,Japanese,German,Russian

If I need customize Packing Cartons, is that available?

Yes, we have production line for packing box and cartons. we can make it according to your special requirement. If you are interested in our goods , please kindly send an inquiry to us !
