Product Description

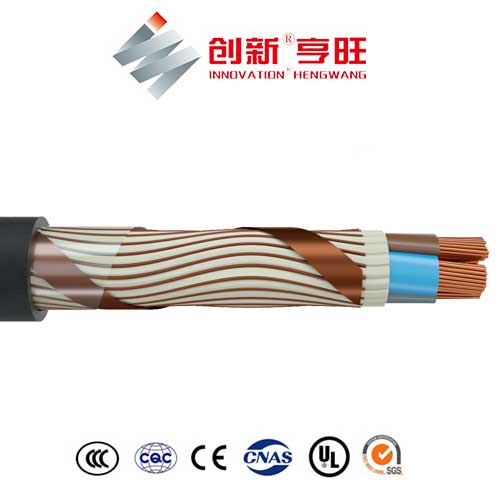

NYCWY | PCV Insulated Heavy Current Cable with Concentric Conductor

NYCWY Cable Application

In dry, humid and wet locations, cable ducts, outdoors, underground and in water.

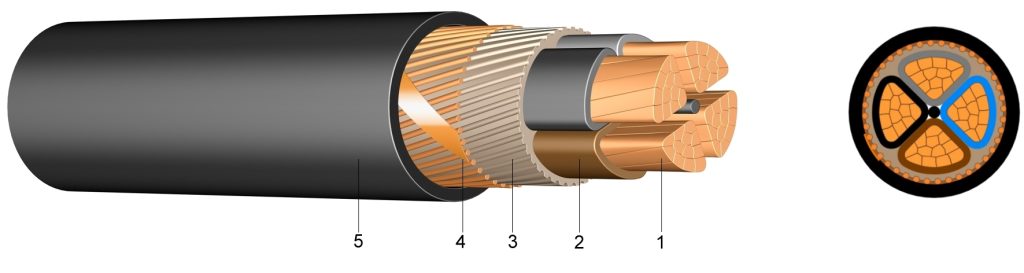

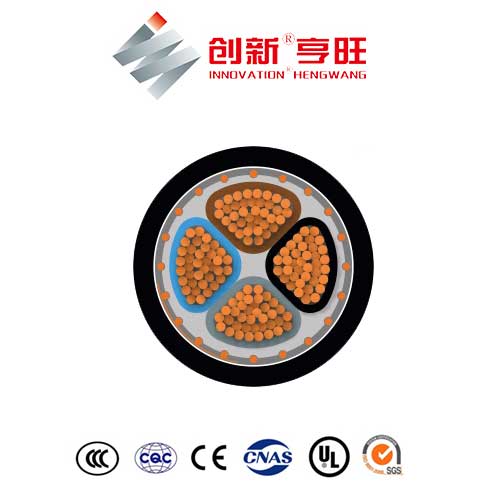

NYCWY Cable Construction

1…..solid or stranded bare copper wire
2…..core insulation of polyvinylchloride (PVC)
3…..PVC core covering
4…..concentric conductor of copper wires and copper tape applied helically
5…..outer sheath of polyvinylchloride (PVC), black

NYCWY Cable Standards

DIN VDE 0276-603 DIN EN 60228 class 1 (construction) HD 308 S2 (core identification)

NYCWY Cable Technical data
Nominal voltage Uo/U [V] 600 / 1000 Volt
Test voltage [V]AC 4000
Temperature range in motion –  5°C till +70°C
fixed -20°C till +70°C
Operating temperature short circuit °C 160
Short circuit time max. [sec] 5
Bending radius one time / fixed x diameter 12
Bending radius in motion x diameter 15
Flammability standard EN 60332-1-2
NYCWY Cable Specifications
Number of cores and nominal cross section mm² Copper figure kg/km Overall diameter appr. mm Weight appr. kg / km Current carrying capacity ground A Current carrying capacity air A
2 x   10 RE/  10 312,00 19 660 79 60
3 x   10 RE/  10 408,00 20 760 79 60
2 x   16 RE/  16 489,60        21     880     102        80
3 x   16 RE/  16 643,20 22 1.040 102 80
3 x   25 RM/  16 902,40 26 1.490 133 108
3 x   25 RM/  25 1.003,20 26 1.580 133 108
3 x   35 SM/  16 1.190,40 27 1.800 160 132
3 x   35 SM/  35 1.401,60 29 1.880 160 132
3 x   50 SM/  25 1.723,20 30 2.260 190 160
3 x   50 SM/  50 1.999,68 31 2.460 190 160
3 x   70 SM/  35 2.409,60 33 3.060 234 202
3 x   70 SM/  70 2.796,48 34 3.310 234 202
3 x   95 SM/  50 3.295,68 38 4.080 280 249
3 x   95 SM/  95 3.791,04 40 4.510 280 249
3 x 120 SM/  70 4.236,48 42 5.040 319 289
3 x 120 SM/120 4.785,60 43 5.490 319 289
Number of cores and nominal cross section mm² Copper figure kg/km Overall diameter appr. mm Weight appr. kg / km Current carrying capacity ground A Current carrying capacity air A
3 x 150 SM/  70 5.100,48 46 6.040 357 329
3 x 150 SM/150 5.970,24 47 6.750 357 329
3 x 185 SM/  95 6.383,04 51 7.510 402 377
3 x 240 SM/120 8.241,60 57 9.640 463 377
4 x   10 RE/  10 504,00 21 890 79 60
4 x   16 RE/  16 795,84 23 1.240 102 80
4 x   25 RM/  16 1.142,40 28 1.800 133 108
4 x   35 SM/  16 1.526,40 28 2.130 160 132
4 x   50 SM/  25 2.203,20 33 2.870 190 160
4 x   70 SM/  35 3.081,60 36 3.870 234 202
4 x   95 SM/  50 4.207,68 43 5.303 280 249
4 x 120 SM/  70 5.388,48 46 6.380 319 289
4 x 150 SM/  70 6.540,48 51 7.730 357 329
4 x 185 SM/  95 8.159,04 57 9.770 402 377
4 x 240 SM/120 10.476,48 64 12.540 463 443
